JID-PCB Manufacturing Process

For the quality of finished printed circuit boards, the engineering process is the primary deciding factor in the entire PCB fabrication process. JID- PCB can provide the best engineering process services. Each of our engineers has extensive expertise in the field of PCB production and outstanding dedication and innovative spirit. Our skillful production workers have been elaborately trained to meet 5S lean production and management requirement.

Our PCB fabrication processes have been optimized professionally, so JID- PCB can offer higher standard quality and more efficiency production than other PCB manufacturers. Following are JID-PCB manufacturing flow charts:

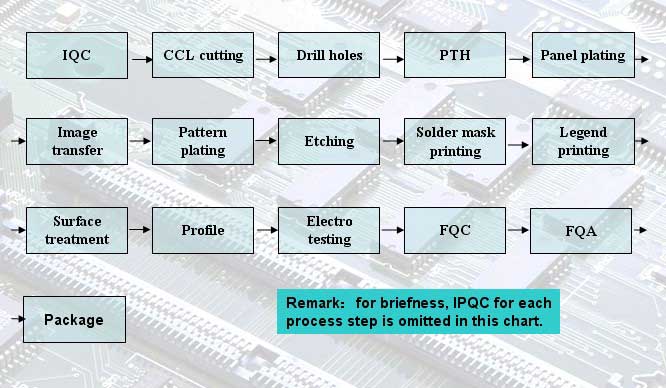

Double Sided PCB manufacturing process:

Multilayer PCB manufacturing process:
